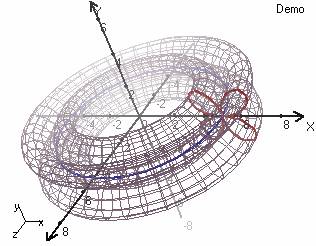

Doğrusal Süpürme - Liner Swapping

  0<a<2*pi   ,  a(step)=pi/20

  0<b<2*pi   ,  b(step)=pi/20

Fx(a,b) = R2*sin(b)

Fy(a,b) = R*cos(a)

Fz(a,b) = R2*cos(b)

         R = 2*sin(2*a)

       R2 = 5 + R*sin(a)



  0<a<2*pi   ,  a(step)=pi/40

Fx(a) = R*sin(a) + 5

Fy(a) = R*cos(a)

Fz(a) = 0

      R = 2*sin(2*a)



  0<b<2*pi   ,  b(step)=pi/40

Fx(b) = R2*sin(b)

Fy(b) = 0

Fz(b) = R2*cos(b)

      R2 = 5

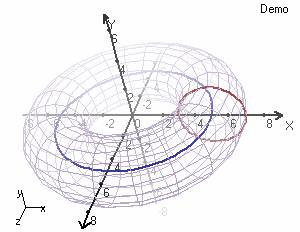

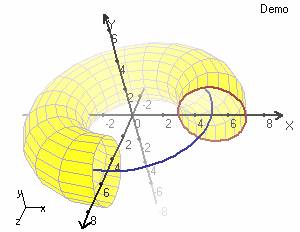

Doğrusal Süpürme - Liner Swapping

  0<a<2*pi   ,  a(step)=pi/10

  0<b<2*pi   ,  b(step)=pi/10

Fx(a,b) = R2*sin(b)

Fy(a,b) = R*cos(a)

Fz(a,b) = R2*cos(b)

         R = 2

       R2 = 5 + R*sin(a)



  0<a<2*pi   ,  a(step)=pi/40

Fx(a) = R*sin(a) + 5

Fy(a) = R*cos(a)

Fz(a) = 0

      R = 2



  0<b<2*pi   ,  b(step)=pi/40

Fx(b) = R2*sin(b)

Fy(b) = 0

Fz(b) = R2*cos(b)

      R2 = 5

Doğrusal Süpürme - Liner Swapping

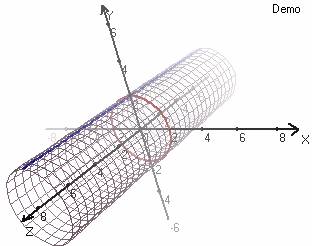

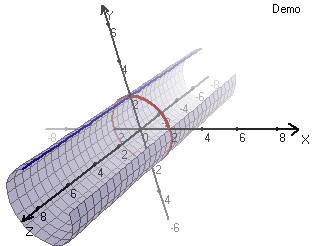

Silindir (Boru) – Cylinder (pipe)

   0<a<2*pi   ,  a(step)=pi/10

  -8<z<8       ,  z(step)=0.5

Fx(a,z) = R*sin(a)

Fy(a,z) = R*cos(a)

Fz(a,z) = z

         R = 2



   0<a<2*pi   ,  a(step)=pi/40

Fx(a) = R*sin(a)

Fy(a) = R*cos(a)

Fz(a) = 0

      R = 2



  -8<z<2*8i   ,  z(step)=0.25

Fx(z) = 0

Fy(z) = 2

Fz(z) = z

Döndürme  - Rotation Swapping

(Küre - Sphare)

  0<a<pi      ,  a(step)=pi/10

  0<b<2*pi   ,  b(step)=pi/10

Fx(a,b) = r2*sin(b)

Fy(a,b) = R*cos(a)

Fz(a,b) = r2*cos(b)

         R =  4

        r2 =  R*sin(a)



  0<a<pi     ,  a(step)=pi/40

Fx(a) = R*sin(a)

Fy(a) = R*cos(a)

Fz(a) = 0

      R = 4



  0<b<2*pi   ,  b(step)=pi/40

Fx(b) = r2*sin(b)

Fy(b) = 0

Fz(b) = r2*cos(b)

      r2 = 4

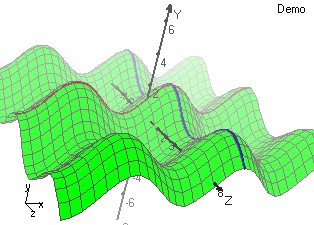

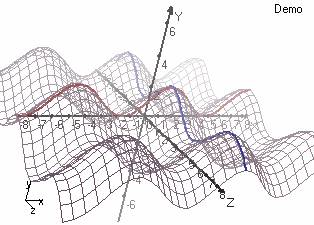

Doğrusal Süpürme - Liner Swapping

(Düzlemsel yüzey – Plane Surface)

  -8<x<8   ,  x(step)=0.5

  -8<z<8   ,  z(step)=0.5

Fx(x,z)= x

Fy(x,z)= sin(x) + cos(z)   (->toplama - addition)

Fz(x,z)= z



  -8<z<8   ,  z(step)=0.5

Fx(z)= pi/2

Fy(z)= cos(z)+1

Fz(z)= z



  -8<x<8   ,  x(step)=0.5

Fx(x)= x

Fy(x)= sin(x)+1

Fz(x)= 0

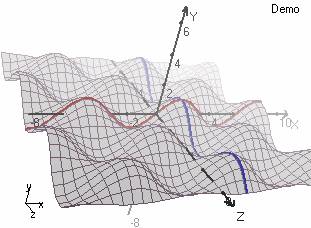

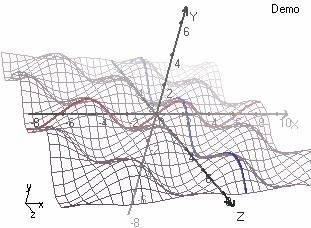

Doğrusal Süpürme - Liner Swapping

(Düzlemsel yüzey – Plane Surface)

  -8<x<8   ,  x(step)=0.5

  -8<z<8   ,  z(step)=0.5

Fx(x,z)= x

Fy(x,z)= sin(x) * cos(z)   (->çarpma - multiply )

Fz(x,z)= z



  -8<z<8   ,  z(step)=0.5

Fx(z)= pi/2

Fy(z)= cos(z)

Fz(z)= z



  -8<x<8   ,  x(step)=0.5

Fx(x)= x

Fy(x)= sin(x)

Fz(x)= 0

Toplama - Addition

çarpma - multiply

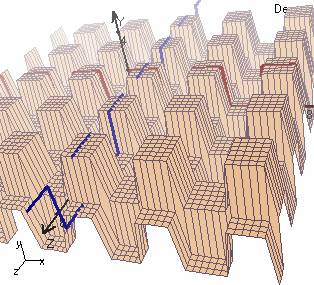

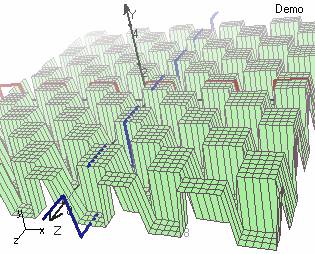

Doğrusal Süpürme - Liner Swapping

(Düzlemsel yüzey – Plane Surface)

  -8<x<8   ,  x(step)=0.25

  -8<z<8   ,  z(step)=0.25

Fx(x,z)= x

Fy(x,z)= k1 + k2

Fz(x,z)= z

n=2, y=sin(n*x) , y2=cos(n*z)

k1=sgn(y)     (-> or k2=(y>0) - (y<0) )

k2=sgn(y2)   (-> or k2=(y2>0) - (y2<0) )



  -8<x<8   ,  x(step)=0.125

Fx(x)= x

Fy(x)= k1 + 1

Fz(x)= z

n=2, y=sin(n*x)

k1=sgn(y)     (-> or k2=(y>0) - (y<0) )



  -8<z<8   ,  z(step)=0.125

Fx(z)= pi/4

Fy(z)= k2 + 1

Fz(z)= z

n=2,  y2=cos(n*z)

k2=sgn(y2)   (-> or k2=(y2>0) - (y2<0) )

Nane Sekeri

  0<a<pi      ,  a(step)=pi/10

  0<b<2*pi   ,  b(step)=pi/10

Fx(a,b) = R*sin(a)*sin(b)

Fy(a,b) = R*cos(a)

Fz(a,b) = R*cos(b)

         R =  4



  0<a<pi     ,  a(step)=pi/40

Fx(a) = R*sin(a)

Fy(a) = R*cos(a)

Fz(a) = 0

      R = 4



  0<b<2*pi   ,  b(step)=pi/40

Fx(b) = R*sin(b)

Fy(b) = 0

Fz(b) = R*cos(b)

      R = 4

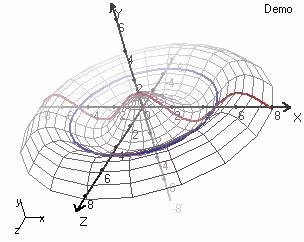

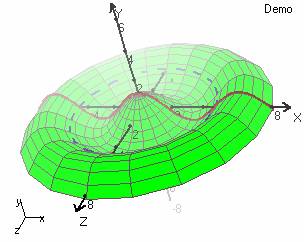

Döndürme - Rotation Swapping

(Semsiye - umbrella)

 -8<x<8     ,  x(step)=0.5

  0<a<pi    ,  a(step)=pi/10

Fx(x,a) = R*sin(a)

Fy(x,a) = cos(x)

Fz(x,a) = R*cos(a)

         R =  x



  -8<x<8     ,  a(step)=pi/40

Fx(a) = x

Fy(a) = cos(x)

Fz(a) = 0



  0<a<2*pi   ,  a(step)=pi/40

Fx(b) = R*sin(a)

Fy(b) = 0

Fz(b) = R*cos(a)

      R = 3/2*pi

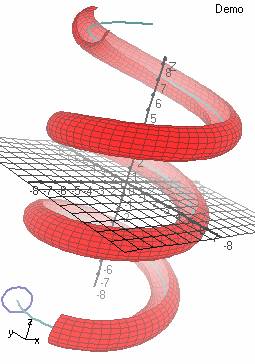

Doğrusal Süpürme - Liner Swapping

Yay – Spiral Tube

   0<a<2*pi   ,  a(step)=pi/10

  -9<z<9    ,  z(step)=0.1

Fx(a,z) = R*cos(z)

Fy(a,z) = R*sin(z)

Fz(a,z) = z + sin(a)

         R = 5 + cos(a)



  -10<z<10   ,  z(step)=0.1

Fx(a) = R*cos(z)

Fy(a) = R*sin(z)

Fz(a) = 0

      R = 5



   0<a<2*pi   ,  a(step)=pi/10

Fx(z) = R*cos(z)

Fy(z) = R*sin(z)

Fz(z) = z + sin(a)

      z = - 10

      R = 5 + cos(a)
